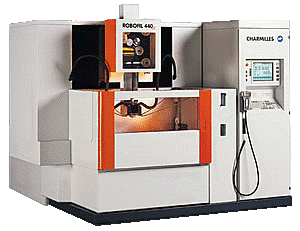

Charmilles Robofil 440cc Wire EDM Machine (New April 2006)

Charmillies 440cc

The Charmilles Robofil 440cc machine has a new generator making it one of the fastest wire EDM machines in the world. The ThermoCut wire threading system is faster and more reliable than the old system, and is one of the most reliable for unattended machining. Accuracy is ensured by a closed-loop feedback system which uses precision linear glass scales. Due to a fixed worktable, workpiece weight does not affect the accuracy of the machine. In addition, the independent X-Y and U-V axes provide true 4-axis machining and large taper angles.

transparent gif
Travel: X-Y
Travel: U-V
Travel: Z
Maximum Taper
Maximum Workpiece Weight
Max. Workpiece Submerged Height
21.65" x 13.78"
21.65" x 13.78"
0" - 15.75"
±30° over the 15.75"
3300 lbs.
15.75"
transparent gif

Charmilles Robofil 290 Wire EDM Machine (New February 1998)

Charmillies 290

Accuracy of the Robofil machine is ensured by a closed-loop feedback system which uses precision linear glass scales. Charmilles Technologies' patented Profil-Expert adjusts the machining parameters before each change of direction to improve accuracy of the part over the entire height of the work piece. Due to a fixed worktable, work piece weight does not affect the accuracy of the machine. In addition, the independent X-Y and U-V axis provide true 4-axis machining and large taper angles.

transparent gif

Charmilles Robofil 290 Wire EDM Machine (New May 1997)

Charmillies 290

Accuracy of the Robofil machine is ensured by a closed-loop feedback system which uses precision linear glass scales. Charmilles Technologies' patented Profil-Expert adjusts the machining parameters before each change of direction to improve accuracy of the part over the entire height of the work piece. Due to a fixed worktable, work piece weight does not affect the accuracy of the machine. In addition, the independent X-Y and U-V axis provide true 4-axis machining and large taper angles.

transparent gif
Travel: X-Y
Travel: U-V
Travel: Z
Maximum Taper
Maximum Workpiece Weight
Tolerance
15.75" x 9.85"
15.75" x 9.85"
0" - 7.88"
±30° over 8"
1100 lbs.
±0.0002"
transparent gif

Brown and Sharpe Gage 2000 R Series CMM (New 3/99)

Brown and Sharpe CMM

The GAGE 2000 R Series Measurement Station replaces traditional manual measuring methods and provides more precise measurement and inspection of parts. Our CMM ensures the quality of our parts

transparent gif
Travel: X-axis
Travel: Y-axis
Travel: Z-axis
Linear Displacement Accuracy
Linear Displacement Accuracy
Linear Displacement Accuracy
Repeatability
18"
20"
16"
0.0002" (x-axis)
0.0002" (y-axis)
0.0002" (z-axis)
0.00016"
transparent gif

System 3R Work Holding Solutions

System 3R fixture system 3r logo System 3R fixture

Our tooling consists of System 3R macro chucks, leveling heads, and workholding devices. We have a macro air chuck in each of our machines as well as our CMM. This allows us to mount the workpiece in a holder, level the part, and locate the part using the CMM all outside the machine. We then simply snap the tooling into the machine. This capability reduces machine downtime, and accuracy is assured because the tooling repeats to within 0.00008".

transparent gif

Esprit CAD/CAM Software

esprit logo

Esprit is the leading CAD/CAM software used in the wire EDM industry. It supports the cutting of tapers, cones, and profiles requiring 4-axis machining such as parts with a circle on one end and a square on the other. Esprit is endorsed by OEM manufactures which ensures the code Esprit produces will deliver the expected results. It also accepts files from many other CAD systems, ensuring versatility.

transparent gif

Tree CNC Milling Machine (purchased used January 2006)

CNC Mill transparent gif
Travel: X-axis
Travel: Y-axis
Travel: Z-axis
28"
10"
5.5"

We use Esprit to program our CNC milling machine. We use the mill to drill holes in, and to engrave, some of our parts.

transparent gif

Bridgeport Manual Milling Machine (purchased used 5/97)

* 9" x 42" Travel.
* Digital Readout on X, Y, and Z axis.

transparent gif

Sharp SH-920 Surface Grinder (New 5/97)

grinder transparent gif

* 11" x 26" Table Travel
* 10" x 20" Electro-Magnetic Chuck
* 14" x 1" Wheel Size
* Equipped with an automatic down feed and coolant system.
